pSG5 Large T

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pSG5 Large T
出品公司: 爱迪基因
目录编号: 9053
存储实验室: William Hahn

载体骨架基本信息
载体名称: pSG5
载体出品公司: Stratagene
载体抗性: 氨苄青霉素
空载体大小: 4076 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: large T antigen,large T cDNA
物种来源: simian virus
插入大小: 2200 bp
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: BamHI(未破坏)
3' 克隆位点: BamHI(未破坏)
5' 测序引物 T7
3' 测序引物 SV40pA-R

文献引用方法
材料和方法部分: pSG5 Large T was a gift from William Hahn (Addgene plasmid # 9053 ; http://n2t.net/addgene:9053 ; RRID:Addgene_9053)

载体图谱质粒图谱和多克隆位点信息

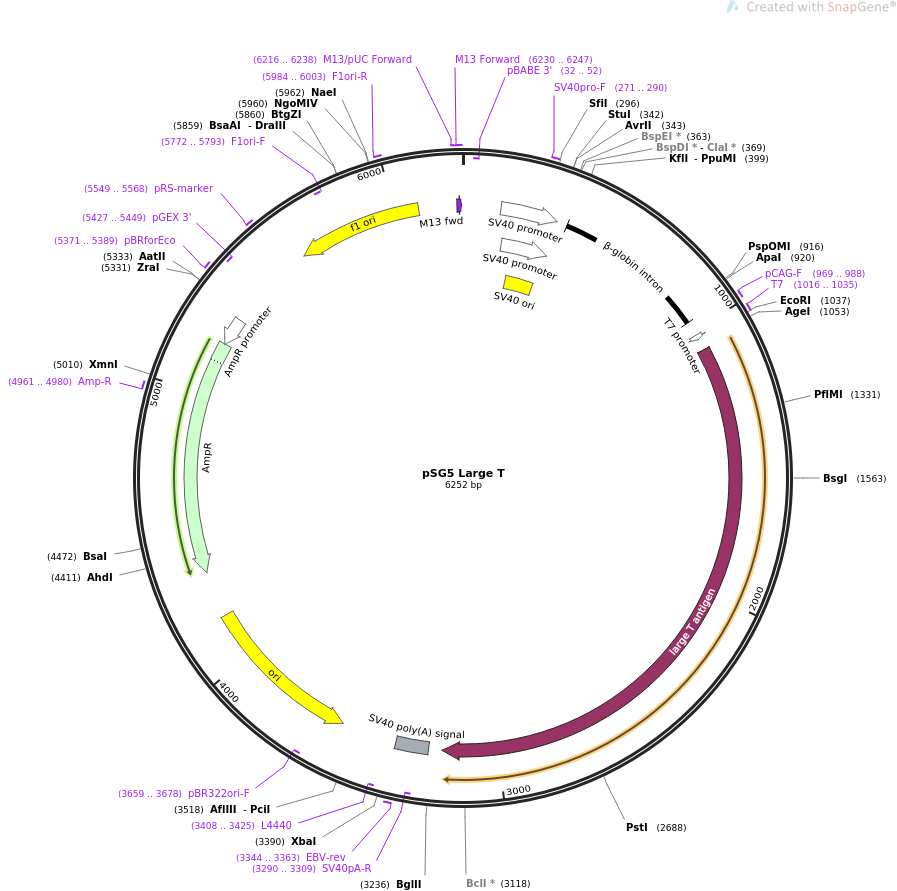

pSG5 Large T质粒图谱

载体简介

载体序列

LOCUS       pSG5 Large T                6252 bp ds-DNA     circular SYN 17-MAY-2019
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pSG5 Large T
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6252)
  TITLE     T antigen
REFERENCE   2  (bases 1 to 6252)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 17, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6252
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(32..52)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        140..350
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     promoter        162..358
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      209..344
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     271..290
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     intron          389..961
                     /label=-beta-globin intron
                     /note="intron from rabbit beta-globin gene"
     primer_bind     969..988
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     primer_bind     1016..1035
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        1016..1034
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             1076..3202
                     /codon_start=1
                     /product="large T antigen from SV40 (simian virus 40)"
                     /label=large T antigen
                     /translation="MDKVLNREESLQLMDLLGLERSAWGNIPLMRKAYLKKCKEFHPDK
                     GGDEEKMKKMNTLYKKMEDGVKYAHQPDFGGFWDATEIPTYGTDEWEQWWNAFNEENLF
                     CSEEMPSSDDEATADSQHSTPPKKKRKVEDPKDFPSELLSFLSHAVFSNRTLACFAIYT
                     TKEKAALLYKKIMEKYSVTFISRHNSYNHNILFFLTPHRHRVSAINNYAQKLCTFSFLI
                     CKGVNKEYLMYSALTRDPFSVIEESLPGGLKEHDFNPEEAEETKQVSWKLVTEYAMETK
                     CDDVLLLLGMYLEFQYSFEMCLKCIKKEQPSHYKYHEKHYANAAIFADSKNQKTICQQA
                     VDTVLAKKRVDSLQLTREQMLTNRFNDLLDRMDIMFGSTGSADIEEWMAGVAWLHCLLP
                     KMDSVVYDFLKCMVYNIPKKRYWLFKGPIDSGKTTLAAALLELCGGKALNVNLPLDRLN
                     FELGVAIDQFLVVFEDVKGTGGESRDLPSGQGINNLDNLRDYLDGSVKVNLEKKHLNKR
                     TQIFPPGIVTMNEYSVPKTLQARFVKQIDFRPKDYLKHCLERSEFLLEKRIIQSGIALL
                     LMLIWYRPVAEFAQSIQSRIVEWKERLDKEFSLSVYQKMKFNVAMGIGVLDWLRNSDDD
                     DEDSQENADKNEDGGEKNMEDSGHETGIDSQSQGSFQAPQSSQSVHDHNQPYHICRGFT
                     CFKKPPTPPPEPET"
     polyA_signal    3253..3374
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3290..3309)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3344..3363
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3408..3425)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3579..4167)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3659..3678)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4338..5198)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4961..4980
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5199..5303)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     5371..5389
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(5427..5449)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     5549..5568
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     rep_origin      complement(5635..6090)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(5772..5793)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     5984..6003
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6216..6238
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     6230..6247
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     6231..6247
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 gtcgacttct gaggcggaaa gaaccagctg tggaatgtgt gtcagttagg gtgtggaaag
       61 tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaagg
      121 aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc
      181 aaccatagtc ccgcccctaa ctccgcccat cccgccccta actccgccca gttccgccca
      241 ttctccgccc catggctgac taattttttt tatttatgca gaggccgagg ccgcctcggc
      301 ctctgagcta ttccagaagt agtgaagagg cttttttgga ggcctaggct tttgcaaaaa
      361 gctccggatc gatcctgaga acttcagggt gagtttgggg acccttgatt gttctttctt
      421 tttcgctatt gtaaaattca tgttatatgg agggggcaaa gttttcaggg tgttgtttag
      481 aatgggaaga tgtcccttgt atcaccatgg accctcatga taattttgtt tctttcactt
      541 tctactctgt tgacaaccat tgtctcctct tattttcttt tcattttctg taactttttc
      601 gttaaacttt agcttgcatt tgtaacgaat ttttaaattc acttttgttt atttgtcaga
      661 ttgtaagtac tttctctaat cacttttttt tcaaggcaat cagggtatat tatattgtac
      721 ttcagcacag ttttagagaa caattgttat aattaaatga taaggtagaa tatttctgca
      781 tataaattct ggctggcgtg gaaatattct tattggtaga aacaactaca tcctggtcat
      841 catcctgcct ttctctttat ggttacaatg atatacactg tttgagatga ggataaaata
      901 ctctgagtcc aaaccgggcc cctctgctaa ccatgttcat gccttcttct ttttcctaca
      961 gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag aattgtaata
     1021 cgactcacta tagggcgaat tcggatcccg cgaccggtcg accagctttg caaagatgga
     1081 taaagtttta aacagagagg aatctttgca gctaatggac cttctaggtc ttgaaaggag
     1141 tgcctggggg aatattcctc tgatgagaaa ggcatattta aaaaaatgca aggagtttca
     1201 tcctgataaa ggaggagatg aagaaaaaat gaagaaaatg aatactctgt acaagaaaat
     1261 ggaagatgga gtaaaatatg ctcatcaacc tgactttgga ggcttctggg atgcaactga
     1321 gattccaacc tatggaactg atgaatggga gcagtggtgg aatgccttta atgaggaaaa
     1381 cctgttttgc tcagaagaaa tgccatctag tgatgatgag gctactgctg actctcaaca
     1441 ttctactcct ccaaaaaaga agagaaaggt agaagacccc aaggactttc cttcagaatt
     1501 gctaagtttt ttgagtcatg ctgtgtttag taatagaact cttgcttgct ttgctattta
     1561 caccacaaag gaaaaagctg cactgctata caagaaaatt atggaaaaat attctgtaac
     1621 ctttataagt aggcataaca gttataatca taacatactg ttttttctta ctccacacag
     1681 gcatagagtg tctgctatta ataactatgc tcaaaaattg tgtaccttta gctttttaat
     1741 ttgtaaaggg gttaataagg aatatttgat gtatagtgcc ttgactagag atccattttc
     1801 tgttattgag gaaagtttgc caggtgggtt aaaggagcat gattttaatc cagaagaagc
     1861 agaggaaact aaacaagtgt cctggaagct tgtaacagag tatgcaatgg aaacaaaatg
     1921 tgatgatgtg ttgttattgc ttgggatgta cttggaattt cagtacagtt ttgaaatgtg
     1981 tttaaaatgt attaaaaaag aacagcccag ccactataag taccatgaaa agcattatgc
     2041 aaatgctgct atatttgctg acagcaaaaa ccaaaaaacc atatgccaac aggctgttga
     2101 tactgtttta gctaaaaagc gggttgatag cctacaatta actagagaac aaatgttaac
     2161 aaacagattt aatgatcttt tggataggat ggatataatg tttggttcta caggctctgc
     2221 tgacatagaa gaatggatgg ctggagttgc ttggctacac tgtttgttgc ccaaaatgga
     2281 ttcagtggtg tatgactttt taaaatgcat ggtgtacaac attcctaaaa aaagatactg
     2341 gctgtttaaa ggaccaattg atagtggtaa aactacatta gcagctgctt tgcttgaatt
     2401 atgtgggggg aaagctttaa atgttaattt gcccttggac aggctgaact ttgagctagg
     2461 agtagctatt gaccagtttt tagtagtttt tgaggatgta aagggcactg gaggggagtc
     2521 cagagatttg ccttcaggtc agggaattaa taacctggac aatttaaggg attatttgga
     2581 tggcagtgtt aaggtaaact tagaaaagaa acacctaaat aaaagaactc aaatatttcc
     2641 ccctggaata gtcaccatga atgagtacag tgtgcctaaa acactgcagg ccagatttgt
     2701 aaaacaaata gattttaggc ccaaagatta tttaaagcat tgcctggaac gcagtgagtt
     2761 tttgttagaa aagagaataa ttcaaagtgg cattgctttg cttcttatgt taatttggta
     2821 cagacctgtg gctgagtttg ctcaaagtat tcagagcaga attgtggagt ggaaagagag
     2881 attggacaaa gagtttagtt tgtcagtgta tcaaaaaatg aagtttaatg tggctatggg
     2941 aattggagtt ttagattggc taagaaacag tgatgatgat gatgaagaca gccaggaaaa
     3001 tgctgataaa aatgaagatg gtggggagaa gaacatggaa gactcagggc atgaaacagg
     3061 cattgattca cagtcccaag gctcatttca ggcccctcag tcctcacagt ctgttcatga
     3121 tcataatcag ccataccaca tttgtagagg ttttacttgc tttaaaaaac ctcccacacc
     3181 tccccctgaa cctgaaacat aaaatgaatg caattgttgt tgttaacggg gatccagatc
     3241 ttattaaagc agaacttgtt tattgcagct tataatggtt acaaataaag caatagcatc
     3301 acaaatttca caaataaagc atttttttca ctgcattcta gttgtggttt gtccaaactc
     3361 atcaatgtat cttatcatgt ctggtcgact ctagactctt ccgcttcctc gctcactgac
     3421 tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag ctcactcaaa ggcggtaata
     3481 cggttatcca cagaatcagg ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa
     3541 aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt tccataggct ccgcccccct
     3601 gacgagcatc acaaaaatcg acgctcaagt cagaggtggc gaaacccgac aggactataa
     3661 agataccagg cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg
     3721 cttaccggat acctgtccgc ctttctccct tcgggaagcg tggcgctttc tcatagctca
     3781 cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa
     3841 ccccccgttc agcccgaccg ctgcgcctta tccggtaact atcgtcttga gtccaacccg
     3901 gtaagacacg acttatcgcc actggcagca gccactggta acaggattag cagagcgagg
     3961 tatgtaggcg gtgctacaga gttcttgaag tggtggccta actacggcta cactagaaga
     4021 acagtatttg gtatctgcgc tctgctgaag ccagttacct tcggaaaaag agttggtagc
     4081 tcttgatccg gcaaacaaac caccgctggt agcggtggtt tttttgtttg caagcagcag
     4141 attacgcgca gaaaaaaagg atctcaagaa gatcctttga tcttttctac ggggtctgac
     4201 gctcagtgga acgaaaactc acgttaaggg attttggtca tgagattatc aaaaaggatc
     4261 ttcacctaga tccttttaaa ttaaaaatga agttttaaat caatctaaag tatatatgag
     4321 taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc agcgatctgt
     4381 ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac gatacgggag
     4441 ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc accggctcca
     4501 gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg tcctgcaact
     4561 ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag tagttcgcca
     4621 gttaatagtt tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg
     4681 tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac atgatccccc
     4741 atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag aagtaagttg
     4801 gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac tgtcatgcca
     4861 tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg agaatagtgt
     4921 atgcggcgac cgagttgctc ttgcccggcg tcaatacggg ataataccgc gccacatagc
     4981 agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc
     5041 ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg atcttcagca
     5101 tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa
     5161 aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt tcaatattat
     5221 tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg tatttagaaa
     5281 aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccacctga cgtctaagaa
     5341 accattatta tcatgacatt aacctataaa aataggcgta tcacgaggcc ctttcgtctc
     5401 gcgcgtttcg gtgatgacgg tgaaaacctc tgacacatgc agctcccgga gacggtcaca
     5461 gcttgtctgt aagcggatgc cgggagcaga caagcccgtc agggcgcgtc agcgggtgtt
     5521 ggcgggtgtc ggggctggct taactatgcg gcatcagagc agattgtact gagagtgcac
     5581 catatgcggt gtgaaatacc gcacagatgc gtaaggagaa aataccgcat caggaaattg
     5641 taagcgttaa tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta
     5701 accaataggc cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt
     5761 tgagtgttgt tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca
     5821 aagggcgaaa aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa
     5881 gttttttggg gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat
     5941 ttagagcttg acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag
     6001 gagcgggcgc tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg
     6061 ccgcgcttaa tgcgccgcta cagggcgcgt ccattcgcca ttcaggctgc gcaactgttg
     6121 ggaagggcga tcggtgcggg cctcttcgct attacgccag ctggcgaaag ggggatgtgc
     6181 tgcaaggcga ttaagttggg taacgccagg gttttcccag tcacgacgtt gtaaaacgac
     6241 ggccagtgaa tt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
